微光系列

---

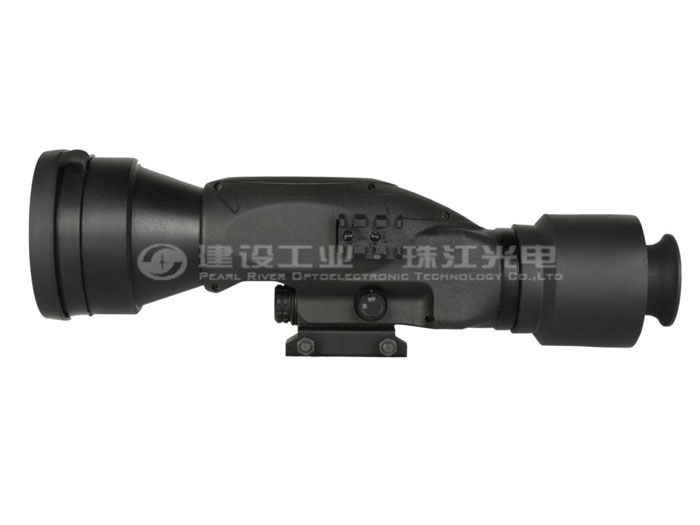

CS/ON8型微光瞄準鏡

Type CS/ON8 Night Vision Sight

---

裝備概述

CS/ON8型微光瞄準鏡主要用于夜間對400m以內自立人員目標進行識別并實施瞄準射擊。本微光前置鏡采用超二代像增強器1XZ18/18WHS(XX2040)型，并可外接3.6倍接目鏡用于手持觀察，方便狙擊手進行搜索目標和對戰場情況輔助觀察。

Summary

B1 Night Vision observation sight, mainly used for night in 400m within the target identification and implementation of targeted shooting. B1 Night Vision uses the super second-generation image intensifier 1XZ18/18WHS (XX2040) type, and can be external 3.6 times times eyepiece for hand-held observation, it is convenient for the sniper to search the target and the battlefield situation auxiliary observation.

技術參數

倍 率1×

視 場10°（加接目鏡手持觀察狀態）

出瞳直徑7毫米

出瞳距離30毫米

分 辨 率串聯高精度白光瞄準鏡時，在微光分辨率板的對比度為35%～40%，照度為1×10-3 Lx的條件下，夜間狀態軸上分辨率 ≤ 0.70毫弧度

視距性能氣象條件為無雨無霧，大氣能見度≥15千米，無月星空，目標背景為不透空條件下，對自立人員看清距離≥150米，識別距離≥400米

零位走動量(含重復裝夾精度)≤1密位

重 量配槍狀態1.2千克；手持觀察狀態1.4千克

連續工作時間50小時

Main specificationsk

Magnification1×

Field of view10°（With hand-held observation）

Exit pupil diameter7mm

Exit pupil distance30mm

Resolution≤0.70 mrad(Mounts in front of a day sight，at 1×10-3Lx, contrast 35%～40% on the scotopic resolution board )

Stadia capabilityPerformance for human target Identification distance ≥150m; recognition distance ≥400m (As no rain and no fog, atmospheric visibility ≥15km, no moon sky, target background is not permeable conditions)

Zero position motion (including repeat setting error)≤1mil

Weight1.2 Kg （Net weight）;1.4 Kg （With Hand-held observation )

Continuous working time≥50 h

---
